Car blind spot monitoring System 77GHZ H3

As the current stage of car design can not completely exclude the visual blind spot, but can be configured with advanced auxiliary equipment to solve this problem. With the increase of car ownership, how to reduce the incidence of traffic accidents and accident mortality has become an urgent problem, one of the most effective ways to solve this problem is to configure advanced driving assistance systems to improve the safety of car driving and minimize the incidence of accidents and accident mortality. Blind spot monitoring system, also known as merge assist system, or BSM or BLIS for short, is a safety class of high-tech configuration on the car, the main function is to sweep away the blind spot in the rearview mirror, through the microwave radar detection of the vehicle on both sides of the blind spot in the rearview mirror overtaking vehicles, to the driver to remind, so as to avoid accidents in the process of changing lanes due to the blind spot in the rearview mirror, which also determines why we will gladly accept The blind spot monitoring system is a necessary help.

As many car owners know, many accidents in car driving happen in merging, this is because the vehicle has a relatively large blind spot, can not fully observe the situation of the vehicle behind through the rearview mirror, so in the merging collision. The blind spot monitoring (lane assist) is a safety device that helps us check whether there are vehicles and pedestrians behind us when we are merging and helps us merge safely to improve our safety driving. Through the technology to solve the visual blind spot in the rearview mirror, to merge safety greatly provides.

For example, after the vehicle is equipped with a set of 77GHz blind spot monitoring system, the system's radar sensor once confirmed that there are vehicles or other obstacles hiding in the driver's blind spot range, it immediately sends instructions to the receiving device installed on the edge of the rearview mirror, and the lighted cursor on the mirror light or the interior cue light to warn the driver to pay attention to the existing vehicles in the blind spot, thus reducing the casual lane change caused by This reduces the safety risks caused by random lane changes. If the driver then turns on the turn signal and prepares to change lanes or turn, the driver is warned. For example, there will be a small flashing light in the rearview mirror or in the interior lights to warn the driver, as well as an audible warning. If the driver does not turn on the turn signal, then the warning light will remain on after monitoring the blind spot vehicle, but not flashing, when the vehicle behind is away or overtaking the warning light is extinguished, then you can safely change lanes. The blind spot monitoring system also has AOA active overtaking warning, when overtaking the vehicle in front of the warning lights on until the two vehicles to maintain a sufficient safety distance before going off, to prevent accidents, which greatly improves our driving safety.

In addition, the radar operates at 77 to 79 GHz and can detect oncoming vehicles at a significant distance of 50 meters. The operating temperature range of the blind spot monitoring system is -25 C to +75 C. In addition, this car blind spot monitoring system has the quality of being energy efficient. It has a power consumption of <3 W. In terms of monitoring, the horizontal angle range is 150. it also has a waterproof rating of IP67.

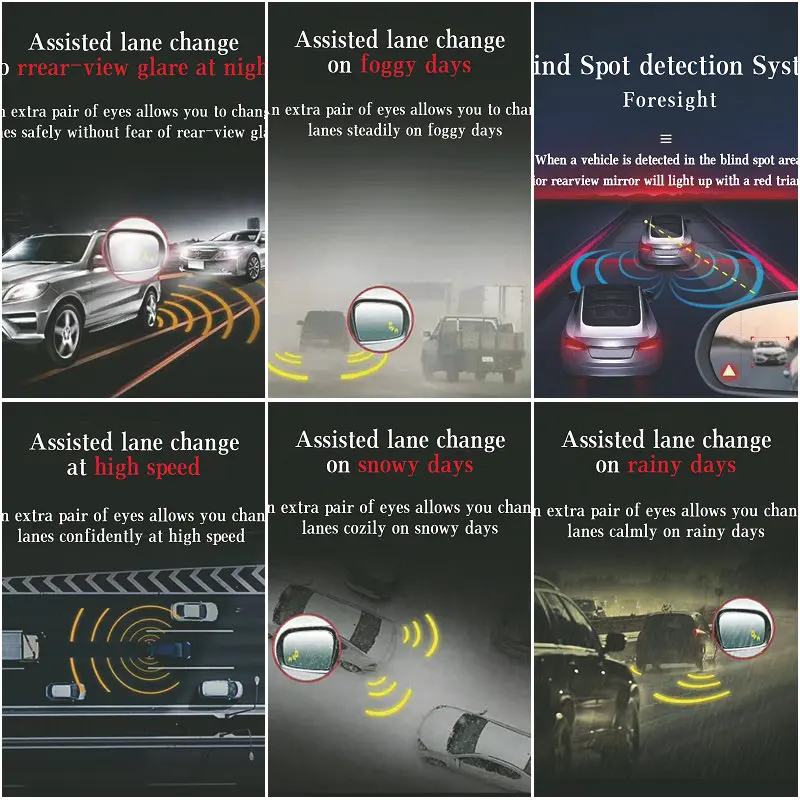

Car blind spot monitoring system 77G H3 show:

car 77G bsd H3 main

  1. Blind spot monitoring system 77G H3 Product List
Name Quantity
77Ghz millimeter wave radar 1
In-car warning light 2
Power cord 1
Buzzer 1
Power extension line 1
Indication lamp extension line 2
Radar box 1
Installing support 1
Accessories package 1
Instructions 1



III. Technical Parameters



No. Project Specifications
01 Operating voltage 9 V- 32 V
02 Operating frequency band 77 -79Ghz
03 Working temperature - 25℃ ~ +75℃
04 Power consumption < 3 W
05 Waterproof grade Ip 67
06 Distance resolution 0 . 2 m
07 Ranging accuracy Is better than 0. 1 m.
08 Detection range 0-50 m
09 Horizontal angle range 150°
10 Pitch angle range ±10°
11 Velocity measurement accuracy 0.1m/s



Car Blind spot monitoring system product usage:
H1 77Ghz Blind Spot Detection System Univeral car blind monitor side assist system Microware radar bsdH1 77Ghz Blind Spot Detection System Univeral car blind monitor side assist system Microware radar bsd
Company Information



OYI Gifts(Dongguan) Co.,Ltd is the brother company as Dongguan Lingxing, OYI Gifts main for silicone, plastic related products, Dongguan Lingxing main for Radar products.

Dongguan Ling xing Intelligent Electronic Technology Co., Ltd. is an enterprise focusing on 24g, 79ghz millimeter-wave radar, focusing on driving active safety early warning systems, integrating R & D, production and sales.

Products:

1\Customized development of 24GHz / 79Ghz millimeter-wave radar

2\24Ghz radar Blind spot detection

3\77Ghz radar Blind spot  monitoring

4\79Ghz radar motorcycle anti-collision system

5\79Ghz commercial vehicle right blind area monitoring system

S6 24Ghz Blind Spot Monitoring System BSM Microwave radar Universal Car Safe Driving Assist Change lane Security Warning

Certification:

BSD Certification

FAQ

 Question and Answer of Car Owner for BSD BSM Blind Zone Monitoring Changing Lanes Auxiliary System



1. Q: What is the use of the blind spot monitoring system?

A: Preventing vehicles from being rear-ended and side-collided by rear-ended vehicles, especially when changing lanes at medium and high speed, solve the problem of a medium and high-speed collision between vehicles, which is the main culprit of major traffic accidents. Data prove that more than 70% of major traffic accidents are caused by blind lane changes at medium and high speeds. Therefore, this auxiliary system is of great significance to driving safety.



2. Q: Does the blind spot monitoring system have other functions besides preventing lane change accidents?

A: Yes. There is also a reversing crossing warning function and a door opening warning function, which can greatly reduce the impact of accidents of reversing and opening the door.



3. Q: All vehicles have rearview mirrors. Why do we need to install blind-zone monitoring and changing lane auxiliary systems to prevent lane change accidents?

A: There are still various risks in lane change due to blind zones in the rearview mirror and other subjective and objective reasons. These reasons are as follows:

(1) Blind zone of the exterior rearview mirror. When the car in the next lane is located at the rear of my car to the B-pillar of my car, we cannot see it from the outside rearview mirror.

(2) Bad weather. When rain, fog, snow, and smog occur, visibility is low and we cannot see clearly the cars coming from behind through the rearview mirror.

(3) Low visibility at night. When driving at night, visibility is low when encountering roads without street lamps.(4) Direct high beam. At night, when the rear high beam is directly illuminated, the rearview mirror is dizzy.

(5) Lack of driving experience. Inexperienced drivers often misjudge the distance and speed of the cars coming from the rear even if they see the cars coming from the rearview mirror, but due to lack of experience, they often misjudge the timing of lane change.

(6) Fatigue driving. Fatigue driving, lower judgment level, the wrong judgment of the distance and speed of the car coming from rear, resulting in misjudgment of lane change timing.

(7) Distracted driving. When distracted driving, the car coming from the rear is not observed in time. Therefore, although the vehicle has inside and outside rearview mirrors, the risk of lane change exists all the time. Therefore, a blind zone monitoring changing lane auxiliary system is needed to prevent it.



4. Q: How does the blind spot monitoring changing lane auxiliary system predict the collision risk of a lane change in advance?

A: Blind zone monitoring changing lane auxiliary system is to continuously transmit radio waves to the rear through two-millimeter wave radars installed on both sides of the rear bumper of the car, and calculate the time when the rear-coming car approaches us through the time difference between transmission and recovery. If this time is greater than the time range of safe lane change, that is, if there may be collision risk during lane change at this time, the system will remind the driver through the warning light on the rearview mirror within three-thousandths of a second. If the driver tries to change lanes by turning on the turn signal at this time, the warning light will change from normally on to flashing on, and the driver will be reminded not to change lanes at this time by the buzzer dripping three times, otherwise, there is a risk of collision.



5. Q: Is the detection distance of the blind spot monitoring system safe enough?

A: This system can detect a distance of 50 meters, which is safe enough. As soon as the rear car enters within 50 meters behind our car, the system will monitor the car in real-time, including obtaining the speed distance of the car and its relative position with our car. If the system monitors that the car can approach us in 3.5 seconds, the system will determine that the car has an impact risk on our car's lane change, and then the system will enter an early warning state to remind the driver. 50 meters detection distance, 3.5 seconds collision time, which conforms to BS ISO 17837-2008.



6. Q: When the car is running, there are many and complicated cars coming from the rear. Can this BSD system identify which car is at risk of collision to our lane change?

A: Yes. We have two-Microwave radars, one on each side, and have a field of view (FOV) of 270 degrees, and can detect and calculate the blind zone on the side and the zone behind 50 meters. The millimeter-wave radar with multiple transmissions and multiple receptions can completely cover 64 moving targets on the side and rear, calculate the risky cars and give early warning, and then identify and eliminate the riskless cars and reduce false alarms.



7. Q: Will the blind spot monitoring system not work due to weather?

A: No. One of the major characteristics of Microwave radar sensors is that they can not be affected by bad weather. They can be used normally on foggy and snowy days. In fact, the value of this system can be better reflected in bad weather.



8. Q: What is the difference between the blind zone solved by the blind spot detection system and the blind zone solved by 360 Panorama?

A: Both products solve the blind zone of cars, but the usage scenarios are different. The use scene of the blind-spot monitoring system to solve blind zone is the B-pillar blind zone in the process of medium and high-speed driving, which can also be said to be a dynamic blind zone. If there is a car in this blind zone and it is not found in time, it is easy to lead to medium and high-speed impact, and the consequences are unimaginable. 360 Panorama solves the blind zone of the car body, and the use scene is more to assist low speed over complex roads, as well as reversing and parking problems. It is more to avoid the problem of scratching. In addition, the blind zone monitoring changing lane auxiliary system has informed the driver whether it is safe to change lanes through intelligent algorithms, while 360 requires the owner to subjectively judge whether there is a risk of scratching by observing the screen.



9. Q: There are several products on the market that are said to assist in the safe lane change, such as streaming media and 360 Panorama. Which scheme is the best solution for lane change collision accidents (high-speed rear-end collision and high-speed side collision)?

A: It must be a blind zone monitoring changing lane auxiliary system. Because the system relies on the millimeter-wave radar for detection and calculation, the advantages of Microwave radar and the early warning model of the system determine that this is the best solution.

(1) Millimeter-wave radar has a long detection distance. When changing lanes at high speed, the relative speed is generally large, which requires that the detection distance is far enough and enough time is left to judge whether there is any risk. Our products have a detection distance of 50 meters and a TTC (collision time) of 3.5 seconds, which meets international standards.

(2) Microwave radar can calculate collision time. Millimeter-wave radar can instantaneously calculate the relative distance and relative speed of vehicles coming from the rear, thus instantaneously calculating the time of connecting us, which allows us to instantaneously judge whether there is any risk in the lane change. This avoids the possible mistakes in human judgment, and also avoids the mistakes in judgment when the line of sight is poor. However, this kind of strong computing camera cannot be compared.

(3) Microwave radar is sensitive. The detection calculation of our system gives an early warning, which can be realized within 3/1000 of a second, which meets the requirement of judging the result instantly when the risk of high-speed lane change needs.

(4) Microwave radar has strong penetration. It can easily penetrate bad weather such as rain, fog, snow, smog, and the like, and can adapt to various working conditions such as day and night. This avoids lane change and collision accidents caused by bad weather.

(5) The early warning method of the system is scientific and reasonable. Through the way of rearview mirror light warning, we fully conform to the scientific and safe driving mode, that is, the driving mode of observing the rearview mirror before changing lanes.



10. Q: The external manifestation of the product is the early warning of the lights coming from the rear. Is it worth the price?

A: Exactly.

First of all. The price of a product is related to its value. The product solves serious car accidents such as high-speed rear-end collisions and side collisions. Just imagine, if the product was used once to avoid a high-speed rear-end collision, would you still think the price was inappropriate?

Secondly. The final presentation of the product is to turn on the light, but whether the light should be turned on or not is the final result given through a series of complicated and accurate detection operations. Yes, you just hold the steering wheel well, and we cover all the risks behind it. You just need to easily check whether the lights are on when changing lanes, and you don't have to bother to make a possible wrong judgment.



11. Q: Will the installation of the product affect the functional use of the original car?

A: No. The system is an independent system, and only ACC is borrowed from the car (it will not affect the power consumption of the battery). In addition, it does not intervene in the original car system and did not affect the warranty of the original car, conflicts with the original car, and other related issues.



12. Q: Do we need to punch holes in the bumper for product installation?

A: Microwave radar is installed in the bumper. There is no need to punch holes in the bumper. It is installed without damage.
